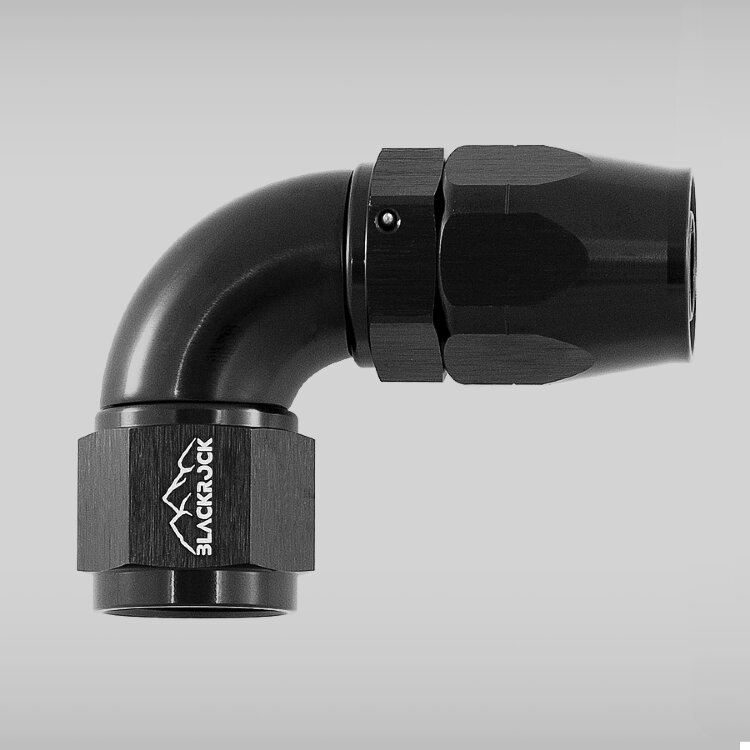

FULL-FLOW AN FITTINGS

Bestseller!

Buy FULL-FLOW AN FITTINGS

HOSE COMPATIBILITY:
STAINLESS STEEL BRAIDED	NYLON BRAIDED

6061 aluminium alloy

AN fittings are specialized components used primarily in automotive industries and aerospace to connect hoses and tubes in hydraulic and fluid systems. These fittings feature a standardized design, which includes a flared (37°) connection that ensures a secure, leak-proof seal.

FULL-FLOW TECHNOLOGY

This type of fittings has an increased body thickness without changing the flow capacity of the liquid.

Black or titanium anodized surface

BLACKROCK LAB AN fittings covered with black or titanium anodized color. The coating is resistant to mechanical stress and corrosion.

On request

Overview

All BLACKROCK LAB items that involve increases in power greater than those required by the highway code of the country of the user, are intended only for competitive use. All BLACKROCK LAB disclaims all liability for any use of the product contrary to national standards.

PART NUMBER	AN size	ANGLE °	SAE trhead size	COLOR
A06-001-3Ti	AN 6	0 °	9/16 in. -18	titanium
A06-001-3BK	AN 6	0 °	9/16 in. -18	black
A06-020-3Ti	AN 6	20 °	9/16 in. -18	titanium
A06-020-3BK	AN 6	20 °	9/16 in. -18	black
A06-030-3Ti	AN 6	30 °	9/16 in. -18	titanium
A06-030-3BK	AN 6	30 °	9/16 in. -18	black
A06-045-3Ti	AN 6	45 °	9/16 in. -18	titanium
A06-045-3BK	AN 6	45 °	9/16 in. -18	black
A06-060-3Ti	AN 6	60 °	9/16 in. -18	titanium
A06-060-3BK	AN 6	60 °	9/16 in. -18	black
A06-090-3Ti	AN 6	90 °	9/16 in. -18	titanium
A06-090-3BK	AN 6	90 °	9/16 in. -18	black
A06-120-3Ti	AN 6	120 °	9/16 in. -18	titanium
A06-120-3BK	AN 6	120 °	9/16 in. -18	black
A06-150-3Ti	AN 6	150 °	9/16 in. -18	titanium
A06-150-3BK	AN 6	150 °	9/16 in. -18	black
A06-180-3Ti	AN 6	180 °	9/16 in. -18	titanium
A06-180-3BK	AN 6	180 °	9/16 in. -18	black
A08-001-3Ti	AN 8	0 °	3/4 in. -16	titanium
A08-001-3BK	AN 8	0 °	3/4 in. -16	black
A08-020-3Ti	AN 8	20 °	3/4 in. -16	titanium
A08-020-3BK	AN 8	20 °	3/4 in. -16	black
A08-030-3Ti	AN 8	30 °	3/4 in. -16	titanium
A08-030-3BK	AN 8	30 °	3/4 in. -16	black
A08-045-3Ti	AN 8	45 °	3/4 in. -16	titanium
A08-045-3BK	AN 8	45 °	3/4 in. -16	black
A08-060-3Ti	AN 8	60 °	3/4 in. -16	titanium
A08-060-3BK	AN 8	60 °	3/4 in. -16	black
A08-090-3Ti	AN 8	90 °	3/4 in. -16	titanium
A08-090-3BK	AN 8	90 °	3/4 in. -16	black
A08-120-3Ti	AN 8	120 °	3/4 in. -16	titanium
A08-120-3BK	AN 8	120 °	3/4 in. -16	black
A08-150-3Ti	AN 8	150 °	3/4 in. -16	titanium
A08-150-3BK	AN 8	150 °	3/4 in. -16	black
A08-180-3Ti	AN 8	180 °	3/4 in. -16	titanium
A08-180-3BK	AN 8	180 °	3/4 in. -16	black
A10-001-3Ti	AN10	0 °	7/8 in. -14	titanium
A10-001-3BK	AN10	0 °	7/8 in. -14	black
A10-020-3Ti	AN10	20 °	7/8 in. -14	titanium
A10-020-3BK	AN10	20 °	7/8 in. -14	black
A10-030-3Ti	AN10	30 °	7/8 in. -14	titanium
A10-030-3BK	AN10	30 °	7/8 in. -14	black
A10-045-3Ti	AN10	45 °	7/8 in. -14	titanium
A10-045-3BK	AN10	45 °	7/8 in. -14	black
A10-060-3Ti	AN10	60 °	7/8 in. -14	titanium
A10-060-3BK	AN10	60 °	7/8 in. -14	black
A10-090-3Ti	AN10	90 °	7/8 in. -14	titanium
A10-090-3BK	AN10	90 °	7/8 in. -14	black
A10-120-3Ti	AN10	120 °	7/8 in. -14	titanium
A10-120-3BK	AN10	120 °	7/8 in. -14	black
A10-150-3Ti	AN10	150 °	7/8 in. -14	titanium
A10-150-3BK	AN10	150 °	7/8 in. -14	black
A10-180-3Ti	AN10	180 °	7/8 in. -14	titanium
A10-180-3BK	AN10	180 °	7/8 in. -14	black
A12-001-3Ti	AN12	0 °	1 1/16 in. -12	titanium
A12-001-3BK	AN12	0 °	1 1/16 in. -12	black
A12-020-3Ti	AN12	20 °	1 1/16 in. -12	titanium
A12-020-3BK	AN12	20 °	1 1/16 in. -12	black
A12-030-3Ti	AN12	30 °	1 1/16 in. -12	titanium
A12-030-3BK	AN12	30 °	1 1/16 in. -12	black
A12-045-3Ti	AN12	45 °	1 1/16 in. -12	titanium
A12-045-3BK	AN12	45 °	1 1/16 in. -12	black
A12-060-3Ti	AN12	60 °	1 1/16 in. -12	titanium
A12-060-3BK	AN12	60 °	1 1/16 in. -12	black
A12-090-3Ti	AN12	90 °	1 1/16 in. -12	titanium
A12-090-3BK	AN12	90 °	1 1/16 in. -12	black
A12-120-3Ti	AN12	120 °	1 1/16 in. -12	titanium
A12-120-3BK	AN12	120 °	1 1/16 in. -12	black
A12-150-3Ti	AN12	150 °	1 1/16 in. -12	titanium
A12-150-3BK	AN12	150 °	1 1/16 in. -12	black
A12-180-3Ti	AN12	180 °	1 1/16 in. -12	titanium
A12-180-3BK	AN12	180 °	1 1/16 in. -12	black
A16-001-3Ti	AN16	0 °	1 5/16 in. -12	titanium
A16-001-3BK	AN16	0 °	1 5/16 in. -12	black
A16-020-3Ti	AN16	20 °	1 5/16 in. -12	titanium
A16-020-3BK	AN16	20 °	1 5/16 in. -12	black
A16-030-3Ti	AN16	30 °	1 5/16 in. -12	titanium
A16-030-3BK	AN16	30 °	1 5/16 in. -12	black
A16-045-3Ti	AN16	45 °	1 5/16 in. -12	titanium
A16-045-3BK	AN16	45 °	1 5/16 in. -12	black
A16-060-3Ti	AN16	60 °	1 5/16 in. -12	titanium
A16-060-3BK	AN16	60 °	1 5/16 in. -12	black
A16-090-3Ti	AN16	90 °	1 5/16 in. -12	titanium
A16-090-3BK	AN16	90 °	1 5/16 in. -12	black
A16-120-3Ti	AN16	120 °	1 5/16 in. -12	titanium
A16-120-3BK	AN16	120 °	1 5/16 in. -12	black
A16-150-3Ti	AN16	150 °	1 5/16 in. -12	titanium
A16-150-3BK	AN16	150 °	1 5/16 in. -12	black
A16-180-3Ti	AN16	180 °	1 5/16 in. -12	titanium
A16-180-3BK	AN16	180 °	1 5/16 in. -12	black
