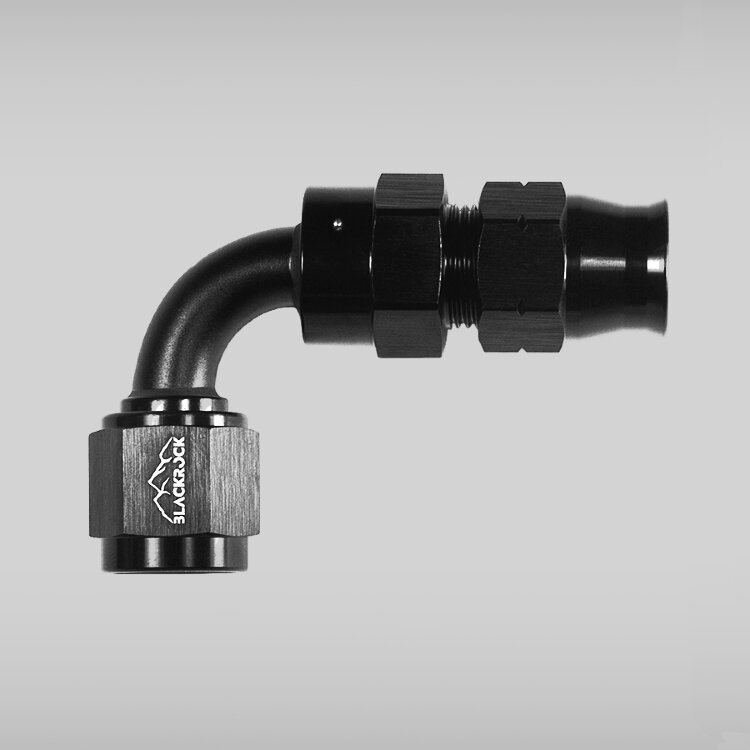

HARDLINE FITTINGS

Previous product
AN KEVLAR SERIES
Buy HARDLINE FITTINGS
! ALUMINIUM HARLDINE COMPATIBILITY ONLY !

6061 aluminium alloy

BLACKROCK LAB hardline fittings are designed for simple and easy assembly of fuel and oil systems . Fitting assembly does not require any special equipment! Each fitting comes complete with a disposable olive.
Add to favorites
Add to compare
On request
  • All BLACKROCK LAB items that involve increases in power greater than those required by the highway code of the country of the user, are intended only for competitive use.
    All BLACKROCK LAB disclaims all liability for any use of the product contrary to national standards.


    PART NUMBER AN size ANGLE ° SAE trhead size COLOR
    H04-001-BK AN 4 0 ° 7/16 in. -20 black
    H04-001-MABK* AN 4 0 ° 7/16 in. -20 black
    H04-045-BK AN 4 45 ° 7/16 in. -20 black
    H04-090-BK AN 4 90 ° 7/16 in. -20 black
    H06-001-BK AN 6 0 ° 9/16 in. -18 black
    H06-001-MABK* AN 6 0 ° 9/16 in. -18 black
    H06-045-BK AN 6 45 ° 9/16 in. -18 black
    H06-090-BK AN 6 90 ° 9/16 in. -18 black
    H08-001-BK AN 8 0 ° 3/4 in. -16 black
    H08-001-MABK* AN 8 0 ° 3/4 in. -16 black
    H08-045-BK AN 8 45 ° 3/4 in. -16 black
    H08-090-BK AN 8 90 ° 3/4 in. -16 black
    H10-001-BK AN 10 0 ° 7/8 in. -14 black
    H10-001-MABK* AN 10 0 ° 7/8 in. -14 black
    H10-045-BK AN 10 45 ° 7/8 in. -14 black
    H10-090-BK AN 10 90 ° 7/8 in. -14 black

    *MALE COUPLING

    BRASS FERRULE FOR HARDLINE FITTINGS
    PART NUMBER AN size FOR TUBE DIA (outer)
    H04-14LV AN 4 1/4 in. 6.4 mm.
    H06-38LV AN 6 3/8 in. 9.5 mm.
    H08-12LV AN 8 1/2 in. 12.7 mm.
    H10-58LV AN 10 5/8 in. 15.9 mm.
